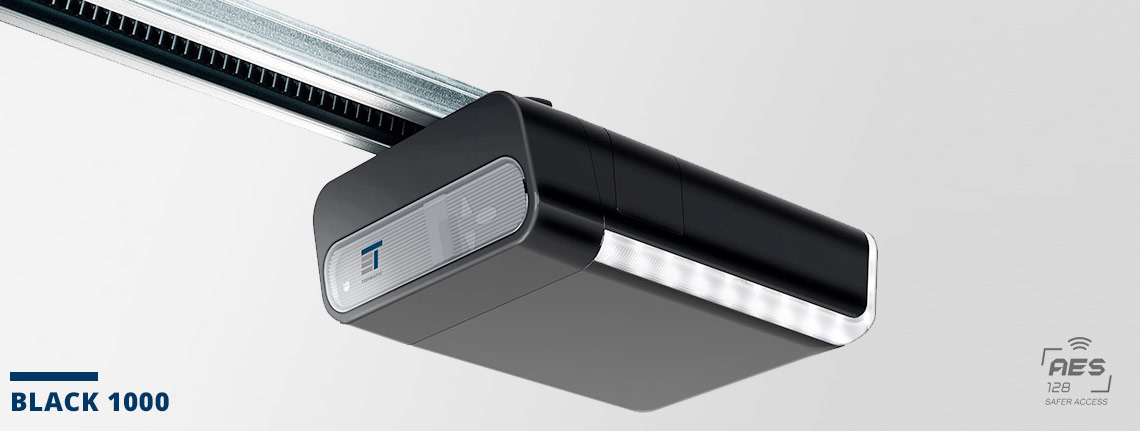

Operators for up-and-over and sectional doors
Suitable for heavy doors up to 17 m²
Clearly arranged 3-button programming
Combinable with all rail systems by TORMATIC
Automatic closing function can be enabled
Rapid action function up to 24 cm/sec.
Smooth running due to ramp function
High-class Door-Select-Function
Push and pull force
1000-1200 N
Supply voltage
230 V / 50 Hz
Operating current
2 A
Power consumption at work
410 W
Power consumption at rest
< 0.5 W
Running speed
17-24 cm/sec.
Duty cycle
30% ED
Lighting
1.6 W LED
Encryption technology
AES 128-Bit
Radio control
433 MHz,
KeeLoq rolling code
Hand transmitter BLACK Remote3-channel hand transmitter, 433 MHz, with KeeLoq rolling code, AES
Light barrier LS 2-I2-wire, operating distance 8 m, for indoor use
Push button DigiCode PremiumMetal keyboard, 433 MHz, KeeLoq rolling code
Emergency release with profile cylinderFor double-leafed doors, sliding overhead and sectional garage doors
Push button DuoControl433 MHz, KeeLoq rolling code
Fitting for sectional doorsFor sectional doors with a slat height of 360 - 565 mm
