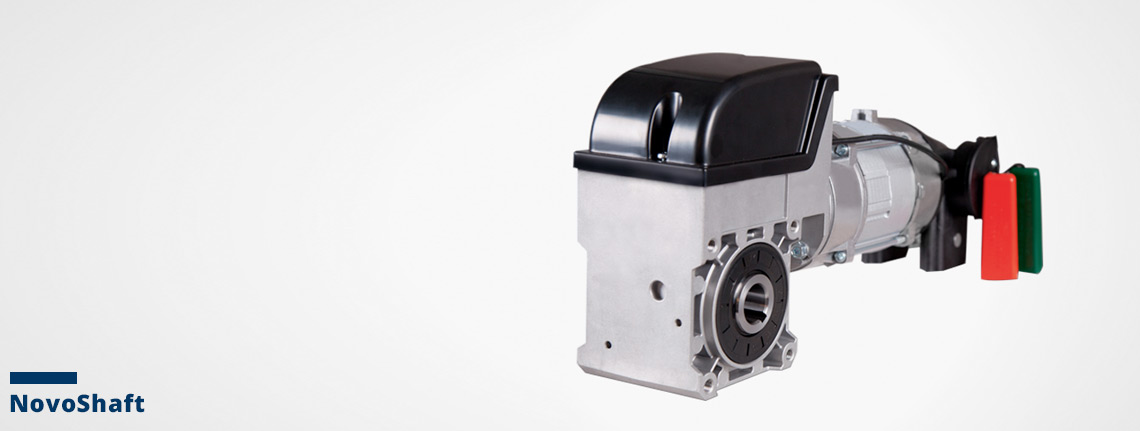

Plug-on shaft operator for commercial sectional doors

Suitable for doors up to 400 kg

Perfectly combinable with T100 control units

Different releases for each situation, Fast chain (SK) or Release (ER)

Integrated digital limit switch



90 Nm

Number of revolutions

24 min-1

Quill shaft diameter

ø 25.4 mm

Static holding torque (M-stat)

450 Nm

Max. door weight

4000 N

Motor performance

0.45 kW

Duty cycle of motor

S3-60 % ED

Protection category

IP 54

Accessories Commercials

Control unit T100 DES
For plug-on shaft operators with 230/400 V motors with digital limit switch

Torque arm
For fixing NovoShaft operators

Gear heating
For NovoShaft

Chain conversation
For NovoShaft, for ø 25.40 mm quill shaft

Spiral cable system
For NovoShaft, with connecting box

Hand transmitter Seasam 800 - Small S3
3-channel hand transmitter, 869.8 MHz

Hand transmitter Seasam 800 – Medium M6
6-channel hand transmitter, 869.8 MHz

Hand transmitter Seasam 800 – Large L15
15-channel hand transmitter, 869.8 MHz

Wall reciever Seasam 800
230 V, BNC antenna included

Cap rail reciever
12-24 V AC/DC, BNC antenna included
