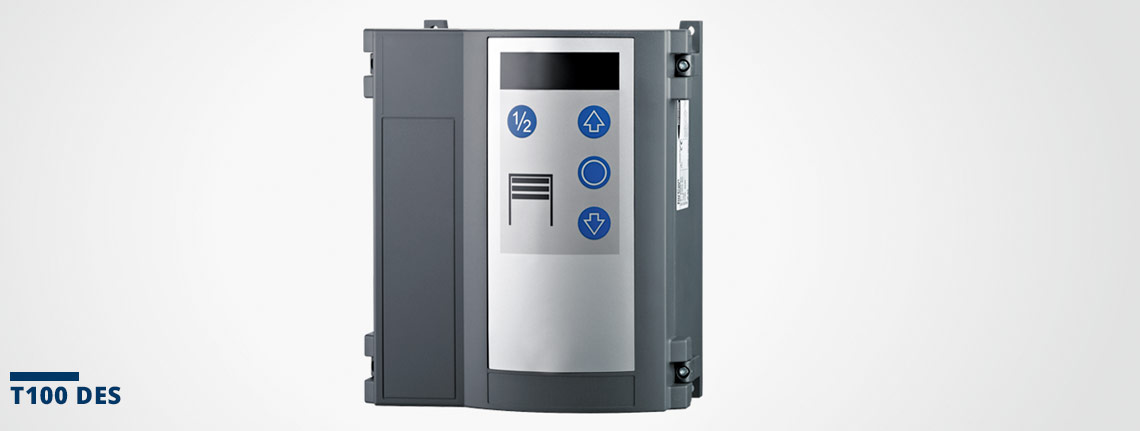

T100 DES

AT A GLANCE

Control unit for industrial sectional doors

Suitable for plug-on shaft operators with motor performance up to 3 kW

Display-supported menu Navigation

No make-and-break cycle limitation to 10 %

Clearly arranged 3-button programming

Clear service and maintenance display

Plug-and-play solutions for additional extensions

Automatic closing, RWA, Entry blockade, Radio system pluggable, Radio system closing edge, State relay, Infrared service tool, Open-Lock



* Also available with mechanical limit switch (T100 NDES)

TECHNICAL SPECIFICATIONS

Closing-edge safety device

8.2 kΩ, OSE, DWL

optional via radio system

Error-handler

Readable

Light barrier

2-/4 wire photocell,

One-way photocell,

Reflexion photocell

Operation

Hold-to-run OPEN / CLOSE,

Impulse OPEN / CLOSE

Imp. OPEN / Hold-to-run CLOSE

Automatic closing

Signal lamp operation

A800 III

Additional features

Floor adjustment door programmable, Soft Start / Soft Stop

with 6.65 DU operator

Accessories Commercial

Hand transmitter Seasam 800 – Small S3
3-channel hand transmitter, 869.8 MHz

Cap rail reciever
12-24 V AC/DC, BNC antenna included

Hand transmitter Seasam 800 – Medium M6
6-channel hand transmitter, 869.8 MHz

Hand transmitter Seasam 800 – Large L15
15-channel hand transmitter, 869.8 MHz

Wall reciever Seasam 800
230 V, BNC antenna included
