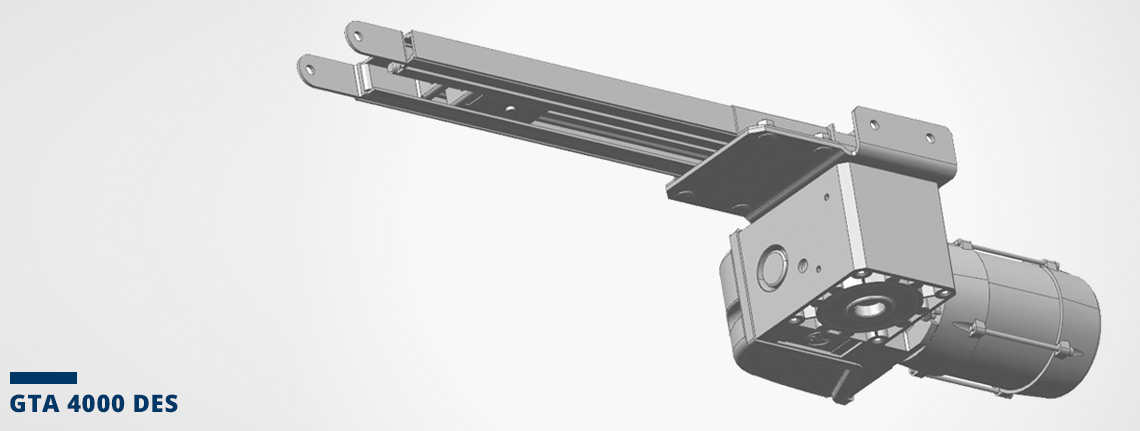

GTA 4000 DES

AT A GLANCE

Special operator for basement garages or multiple garages with control unit T100 DES

400 V three-phase current drive operator

standard automatic closing function (for basement or multiple garages)

No installation of additional impulse sensors necessary, the control buttons are directly integrated in the control unit

Running speed 8 cm/sec.

Connection of safety systems is available

Optionally: Traffic light control A 800 III installable

TECHNICAL SPECIFICATIONS

Torque

90 Nm

Number of revolutions

24 min-1

Quill shaft diameter

ø 25.4 mm

Static holding torque (M-stat)

450 Nm

Max. door weight

2000 N

Motor performance

0.45 kW

Duty cycle of motor Motor

S3-20 % ED

Protection category

IP 54

Accessories Commercial

Control unit T100 DES
For plug-on shaft operators with 230/400 V motors with digital limit switch

Torque arm
For fixing NovoShaft operators

Tracks ILS
Industrial tracks for GTA 4000

Hand transmitter Seasam 800 – Small S3
3-channel hand transmitter, 869.8 MHz

Hand transmitter Seasam 800 – Medium M6
6-channel hand transmitter, 869.8 MHz

Hand transmitter Seasam 800 – Large L15
15-channel hand transmitter, 869.8 MHz

Wall reciever Seasam 800
230 V, BNC antenna included

Cap rail reciever
12-24 V AC/DC, BNC antenna included
