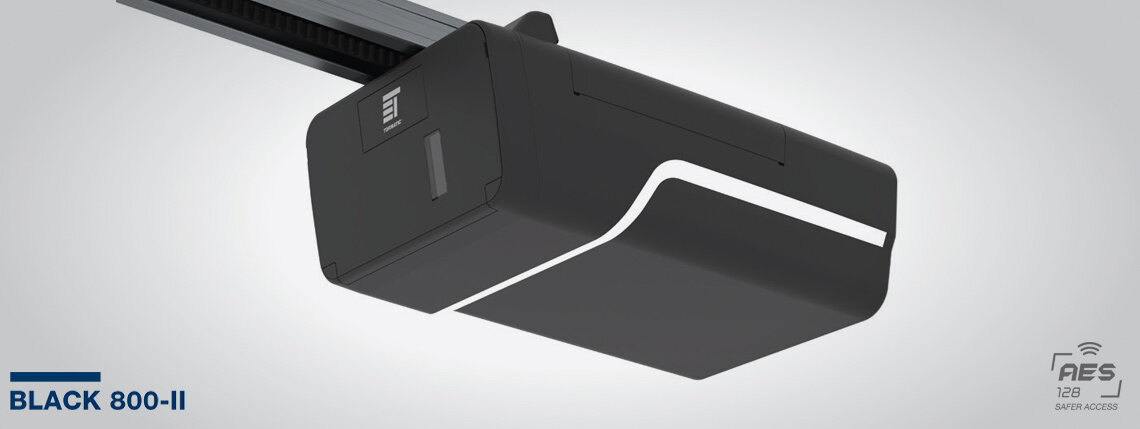

Garage Door Operator BLACK 800 II

THE SOLUTION FOR SINGLE AND DOUBLE GARAGES

Modern design and high-quality technology combine in the BLACK 800 II to create a state-of-the-art, high-tech drive system of the highest class. Sophisticated technical features, such as up to 50% faster door opening thanks to the integrated high-speed function and integrated energy-saving LED lighting (1.6 watts), offer the highest level of convenience and energy efficiency.

AT A GLANCE

• Operators for up-and-over and sectional doors
• Suitable for garage doors up to 14 m²
• Clearly arranged 3-button programming
• Combinable with all rail systems by TORMATIC
• Automatic closing function is adjustable
• Rapid action function up to 24 cm/sec.
• Smooth running due to ramp function
• High-class Door-Select-Function
• Additional connection options:
- Bluetooth for installation via app and advanced settings
- SmartHome Module
- Radio Safety edge

Details about the Black 800 II

THE MOST IMPORTANT DATA AT A GLANCE

AT A GLANCE
Operators for up-and-over and sectional doors
Suitable for garage doors up to 14 m²
Clearly arranged 3-button programming
Combinable with all rail systems by TORMATIC
Automatic closing function is adjustable
Rapid action function up to 24 cm/sec.
Smooth running due to ramp function
High-class Door-Select-Function
Additional connection options:
- Bluetooth for installation via app and advanced settings
- SmartHome Module
- Radio Safety edge

THE SET
Motor head BLACK 800-II (800 N)
Fitting for up-and-over and sectional doors
Transmitter BLACK Remote
Receiver module (pluggable)

POWER & PERFORMANCE
Push and pull force	800 N
Supply voltage	230 V / 50 Hz
Operating current	1.25 A
Power consumption at work	250 W
Power consumption at rest	< 0.5 W
Running speed	17 - 24 cm/sec.
Lighting	7.6 W LED
Lighting phase during operation	60 sec., factory-set

DETAILS

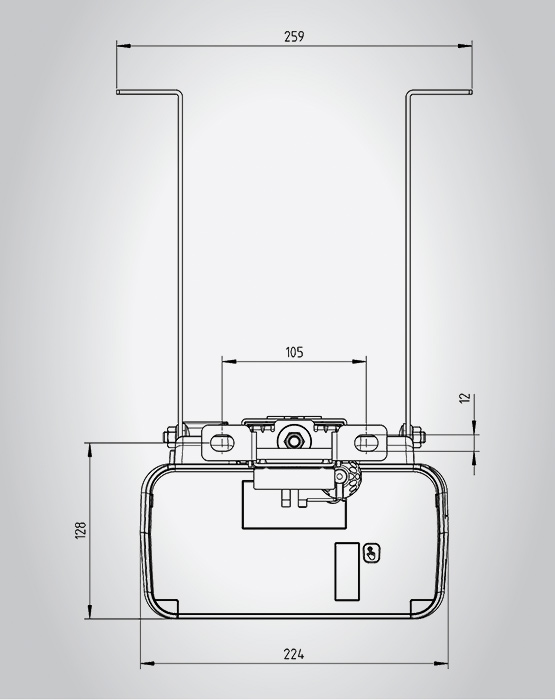

Packaged dimensions (H/W/D)	45.8 / 22.9 / 15.3 cm
Packaged weight	6.4 kg
Safety systems	Automatic force adjustment
Max. running time	Motor switch off after 90 sec.
Blocking	Detection of motor shut down
Gear	Self-locking worm-gear
Quick release P	ossible
Operating temperature	- 20° C / + 60° C

FUNCTIONS
Control unit	Micro-processor controlled Soft Start / Soft Stop Automatic closing
Control sequence	^1stpulse = operator is running ^2ndpulse = operator stops ^3rdpulse = direction reversal
Radio control	433 MHz, 128 bit AES
Llighting via 2nd channel	Approx. 4 minutes
Accouterment	Adjustable lighting from 60 sec. to 4 min. or warning light, Ventilation position, High-class Door-Select-Function
Automatic cut-out	10-step force limitation adjustable for both directions
End-stop cut-out	Microprocessor-controlled detection of running way system, feat. position control
Protection category	IP 20
Radio closing edge	OSE, 8,2 kΩ, wicket door contact
