Introduction

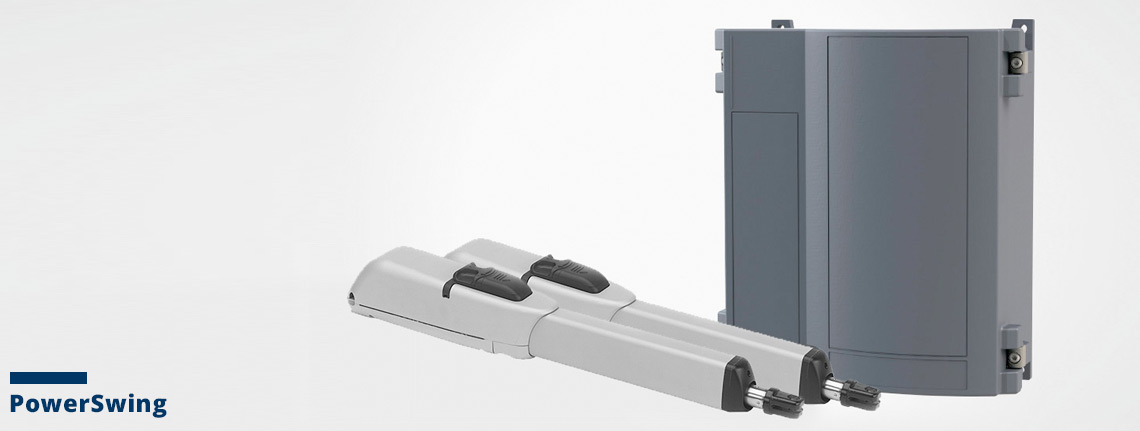

PowerSwing

TECHNICAL DATA



Tensile and compressive force2800 N
Supply voltage230 V / 50 Hz
Further functionsSoft start / soft stop
BlockingMechanical
Safety catchin open / closed position
GearboxSelf-locking worm gear
Control sequenceOPEN / STOP / CLOSE
Radio control433 MHz
KeeLoq change code

AT A GLANCE



Electromechanical 230 V liner operator
Suitable for swing gates up to max. 2.50 m (3.00 m with electric lock)
width and 400 kg door weight
For the private sector
With electric lock
Quick and easy programming
Electronic distance detection (Procoder)
Integrated force monitoring with obstacle detection (Procoder)

ACCESSORIES FOR SLIDING GATE OPERATORS

Design Micro hand-held transmitter

  • 2-channel handheld transmitter
  • in carbon look
  • 433 MHz with KeeLoq exchangeable code

MAX 43-2 hand-held transmitter

  • 2-channel hand-held transmitter
  • 433 MHz with KeeLoq exchangeable code

MAX 43-4 hand-held transmitter

  • 4-channel hand-held transmitter
  • 433 MHz with KeeLoq exchangeable code

Light barrier LS 5F

  • Extra 625
  • Range 8 m
