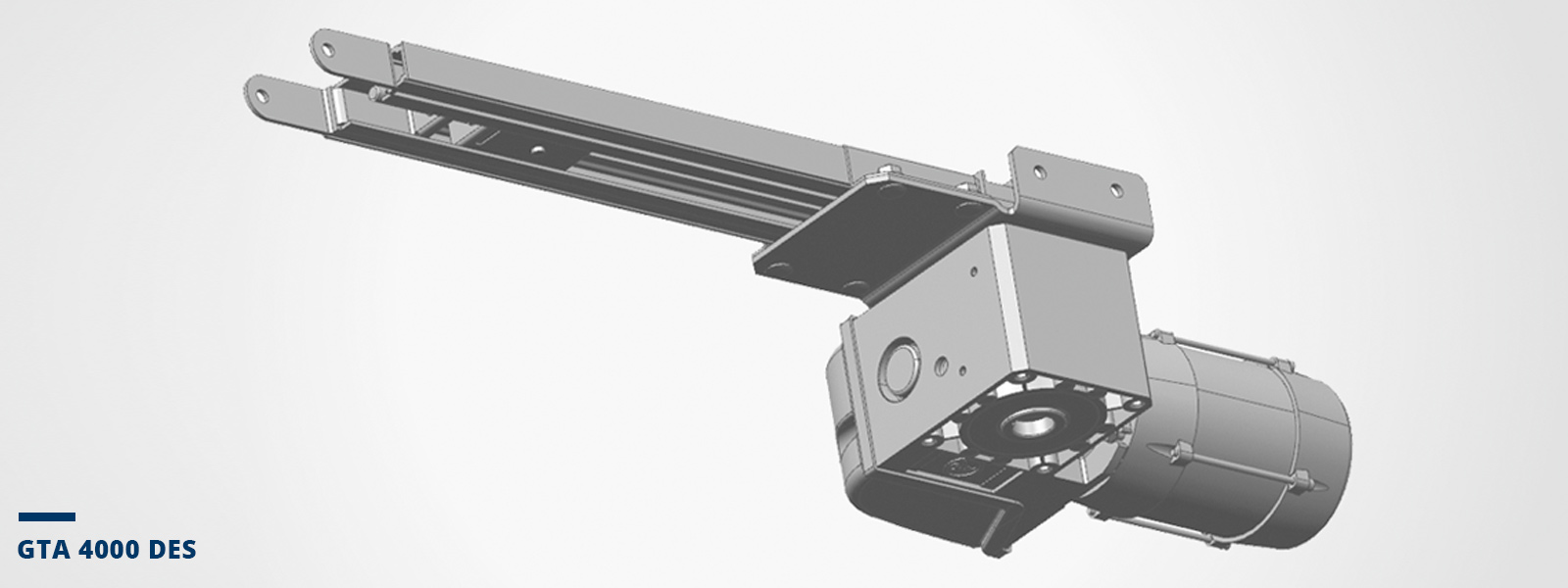

GTA 4000 DES

TECHNICAL DATA



Torque90 Nm
Output speed24 min-1
Hollow shaft diameterø 25.4 mm
Static holding torque (Mstat)450 Nm
Maximum door weight2000 N
Motor power0.45 kW
Motor duty cycleS3-20 % ED
Protection classIP 54

AT A GLANCE



Special warranty for underground car park applications, with T100 DES control unit
400 V three-phase drive
Automatic closing for underground / multi-storey car parks, as standard
No additional installation of pulse generators necessary as the operating buttons are integrated in the control unit
Running speed 19 cm/sec.
Connection of safety devices necessary
Optional: A 800 III traffic light control unit can be installed

ACCESSORIES FOR INDUSTRIAL DOOR OPERATORS & CONTROLS

Control unit T100 DES

  • for shaft-mounted drives
  • with 230/400 V motors
  • with digital limit switch

Torque support

  • For mounting NovoShaft

ILS rails

  • Industrial door tracks for GTA 4000

Sesam 800-Small S3 hand-held transmitter

  • 3-channel handheld transmitter
  • 869.8 MHz

Sesam 800-Medium M6 hand-held transmitter

  • 6-channel handheld transmitter
  • 869.8 MHz

Sesam 800-Large L15 hand-held transmitter

  • 15-channel hand-held transmitter
  • 869.8 MHz

Wall receiver Sesam 800

  • 230 V
  • incl. BNC antenna

DIN rail receiver Sesam 800

  • 12-24 V AC/DC
  • incl. BNC antenna
