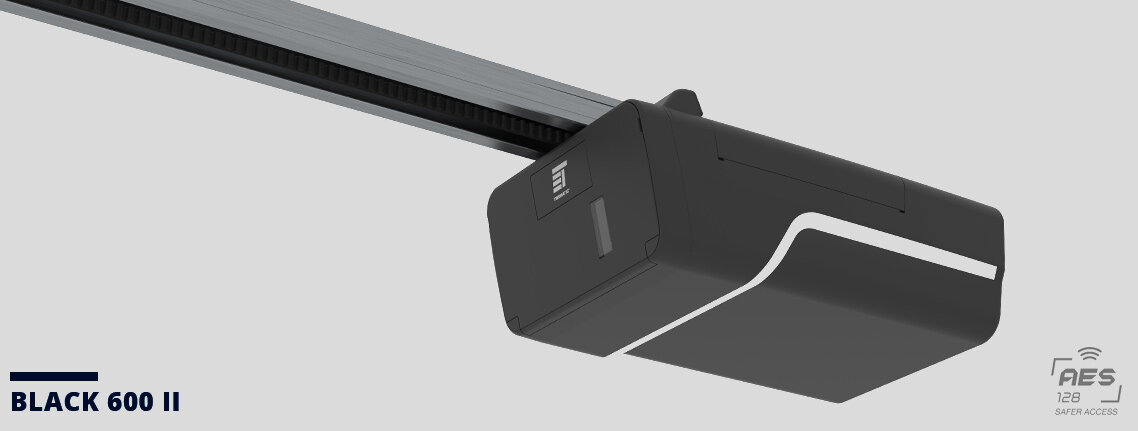

Garage Door Operator BLACK 600 II

THE SOLUTION FOR SINGLE GARAGES

Sophisticated technology belongs in a modern housing. The BLACK 600 II presents itself as a trendy and stylish professional drive system for sectional and up-and-over doors. This garage door drive works particularly well with Novoferm door types and is also suitable for retrofitting other door brands.

AT A GLANCE

• Operators for up-and-over and sectional doors
• Suitable for doors up to 10 m₂
• Clearly arranged 3-button programming
• Combinable with all rail systems by TORMATIC
• Automatic closing function is adjustable
• High-speed function up to 24 cm/sec.
• Smooth running due to ramp function
• High-class Door-Select-Function
• Additional connection options:
- Bluetooth for installation via app and advanced settings
- SmartHome Module
- Radio Safety edge

Details about the Black 600 II

Equipment details

Menu-guided programming
Programming is simple and convenient using three buttons and a clear 7-segment display. Thanks to systematic menu navigation, no setting can be overlooked during programming. All settings are retained even in the event of a power failure. The transparent cover allows for the operating status to be clearly visible at all times. Clear error coding allows for quick and reliable troubleshooting if necessary.

Guide rail
The guide rail offers high deflection and torsional stability. The guide rails are mounted on ball bearings, ensuring extremely quiet operation. A maintenance-free toothed belt is pre-installed in the guide rail at the factory.

LED lighting and accessory connections
The drive unit is equipped with modern, long-lasting, and energy-saving LED lighting. Connections for wired accessories are easily accessible, and radio-controlled accessories can also be used. Furthermore, the Novoferm plug-in module can be used to use a possible app.

BLACK Design Handheld Transmitter
3-channel handheld transmitter, 433 MHz, with KeelLoq interchangeable stylus

Ventilation position for ventilating the garage
To ventilate the garage, open the door approximately 10 cm. It can be moved to the ventilation position from any position by activating the second button on the remote control, the Homematic IP app, or another activator. After 60 minutes, it closes either automatically or in advance by pressing the transmitter.

THE MOST IMPORTANT DATA AT A GLANCE

AT A GLANCE
Operators for up-and-over and sectional doors
Suitable for doors up to 10 m₂
Clearly arranged 3-button programming
Combinable with all rail systems by TORMATIC
Automatic closing function is adjustable
High-speed function up to 24 cm/sec.
Smooth running due to ramp function
High-class Door-Select-Function
Additional connection options:
- Bluetooth for installation via app and advanced settings
- SmartHome Module
- Radio Safety edge

THE SET
Motor head BLACK 600-II (600 N)
Fitting for up-and-over and sectional doors
Transmitter BLACK Remote
Receiver module (pluggable)

POWER AND PERFORMANCE
Push and pull force	600 N
Supply voltage	230 V / 50 Hz
Operating current	1.25 A
Power consumption at work	250 W
Power consumption at rest	< 0.5 W
Running speed	17 - 24 cm/sec.
Lighting	7.6 W LED
Lighting phase during operation	60 sec., factory-set

DETAILS
Packaged dimensions (H/W/D)	45.8 / 22.9 / 15.3 cm
Packaged weight	6.4 kg
Safety systems	Automatic force adjustment
Max. running time	Motor switch off after 90 sec.
Blocking	Detection of motor shut down
Gear	Self-locking worm-gear
Quick release	Possible
Operating temperature	- 20° C / + 60° C

FUNCTIONS
Control unit	Micro-processor controlled Soft Start / Soft Stop Automatic closing
Control sequence	^1stpulse = operator is running ^2ndpulse = operator stops ^3rdpulse = direction reversal
Radio control	433 MHz, KeeLoq rolling code
Llighting via 2nd channel	Approx. 4 minutes
Accouterment	Adjustable lighting from 60 sec. to 4 min. or warning light, Ventilation position, High-class Door-Select-Function
Automatic cut-out	10-step force limitation adjustable for both directions
End-stop cut-out	Microprocessor-controlled detection of running way system, feat. position control
Protection category	IP 20
Radio closing edge	OSE, 8,2 kΩ, wicket door contact
